If you’re a homeowner planning an off-grid, hybrid, or solar-powered pump system, you’ve likely asked: How do I wire batteries in series to get the right voltage for my inverter? Series wiring is the backbone of any reliable Home Solar System, especially for Solar Pump System Battery setups.

Series wiring is simpler than it sounds: connect batteries in a chain to boost voltage—critical for powering inverters, solar pumps, and appliances. Using the right Lithium Ion Battery makes the process safer and easier.

We’re a Dongguan, China-based lithium-ion/sodium-ion battery manufacturer with 10 years of real-world experience. Our new JM 51.2V 100Ah 5kWh Lithium Ion Battery is engineered for home energy storage and solar pumping—safe, long-lasting, and easy to wire in series/series-parallel, making it a top choice for US homeowners going off-grid.

This guide breaks down series wiring basics, its benefits, safe steps, and two real US customer stories—no jargon, just practical advice.

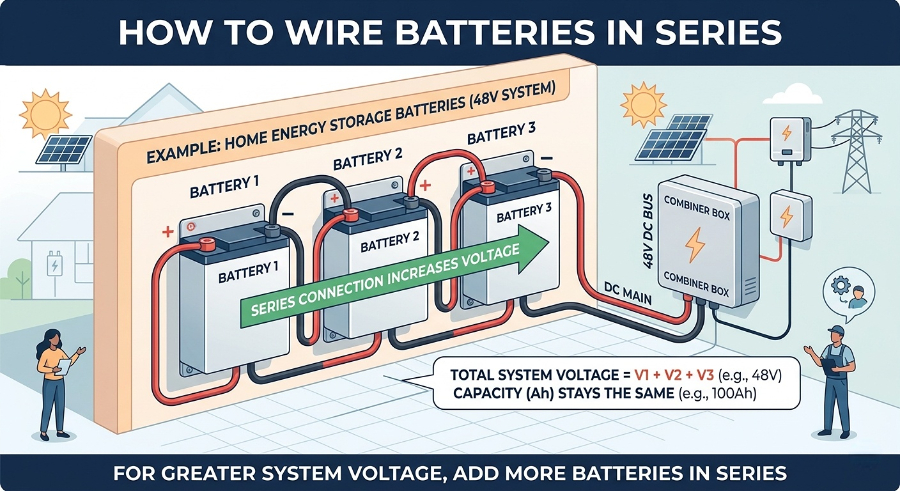

What Is Battery Series Wiring?

Simply put, series wiring connects batteries in a chain: Positive (+) of one → Negative (–) of the next. No fancy tools needed—just patience and attention to detail.

When wiring in series:

Voltage adds up (critical for power delivery)
Capacity (Ah) stays the same (no extra runtime, just more voltage)

Total energy per battery stays consistent. Using our JM 51.2V 100Ah Lithium Ion Battery:

1 battery = 51.2V 100Ah (5kWh)
2 in series = 102.4V 100Ah (double voltage, same energy per unit)
4 in series = 204.8V 100Ah (four times voltage, same capacity)

This setup is ideal for Home Solar System and Solar Pump System Battery projects, as most inverters and pumps need higher voltage than a single 12V/24V battery can provide.

Why Wire Lithium Ion Battery in Series?

You may wonder why not use one big battery—here are the key reasons homeowners choose series wiring:

1. Match Inverter Voltage Requirements

Most residential solar inverters need 48V, 96V+, which a single battery can’t provide. Series wiring boosts voltage, and our 51.2V Lithium Ion Battery is designed for this purpose.

2. Reduce Energy Loss

Higher voltage means lower current, reducing heat, cable loss, and improving efficiency—key for long cable runs to solar pumps or outbuildings.

3. Stable Power for Solar Pumps

Solar Pump System Battery banks need consistent voltage to run pumps, even on cloudy days. Series wiring delivers this stability, preventing sputtering or failure.

4. Scalable Energy Storage

Our 51.2V 100Ah battery supports safe series connection, letting you start small and expand as your energy needs grow.

Tools You Need to Wire Batteries in Series

No fancy equipment—just basic tools from any hardware store:

Identical Lithium Ion Battery units (same model, voltage, capacity, age—non-negotiable)
Heavy-duty battery cables (correct gauge for low loss)
Insulated wrench/screwdriver (prevents short circuits)
Digital multimeter (checks voltage and connections)
Insulated gloves/safety glasses (critical for safety)
Terminal covers and cable ties (secures connections)

Key note: Always use matching batteries. Mixing old/new/different brands causes imbalance, reduced life, and safety risks—stick to our JM 51.2V Lithium Ion Battery.

Step-by-Step: How to Wire Batteries in Series

Follow these steps for a safe, reliable connection—take your time and double-check each step.

Step 1: Arrange Your Batteries

Place batteries side by side in a well-ventilated area, with space for cables and cooling. Ensure terminals are easily accessible.

Step 2: Check Voltage Balance

Use a multimeter to test each battery—voltage difference should be < 0.1V. Mismatched batteries damage the bank.

Step 3: Connect Positive to Negative (Series Chain)

Connect Battery 1’s (+) to Battery 2’s (–); repeat for more batteries. Never connect (+) to (+) or (–) to (–)—that’s parallel wiring.

Step 4: Mark Your Main Output Terminals

The unused (+) on the first battery and (–) on the last are your main outputs for inverters/pumps.

Step 5: Test Total Voltage

Verify total voltage equals the sum of individual batteries (e.g., 2×51.2V = 102.4V). Check connections if voltage is off.

Step 6: Insulate and Secure Connections

Cover terminals with plastic caps and organize wires with ties to prevent short circuits.

Critical Safety Rules for Series Wiring

Safety is paramount—follow these rules to avoid damage or injury:

Only use identical batteries: Same model, brand, voltage, capacity, and charge. Mismatched cells cause failure.
Use batteries with built-in BMS: Our JM 51.2V battery has a smart BMS for overcharge/over-discharge/short circuit protection—never use a lithium battery without one.
Avoid short circuits: Never touch terminals with metal tools; wear insulated gloves and keep metal objects away.
Use the right cable size: Thin cables overheat—use heavy-gauge cables for solar/battery systems.
Plan series-parallel carefully: Use a clean series-then-parallel design (e.g., 2 in series × 2 in parallel) to avoid imbalance.

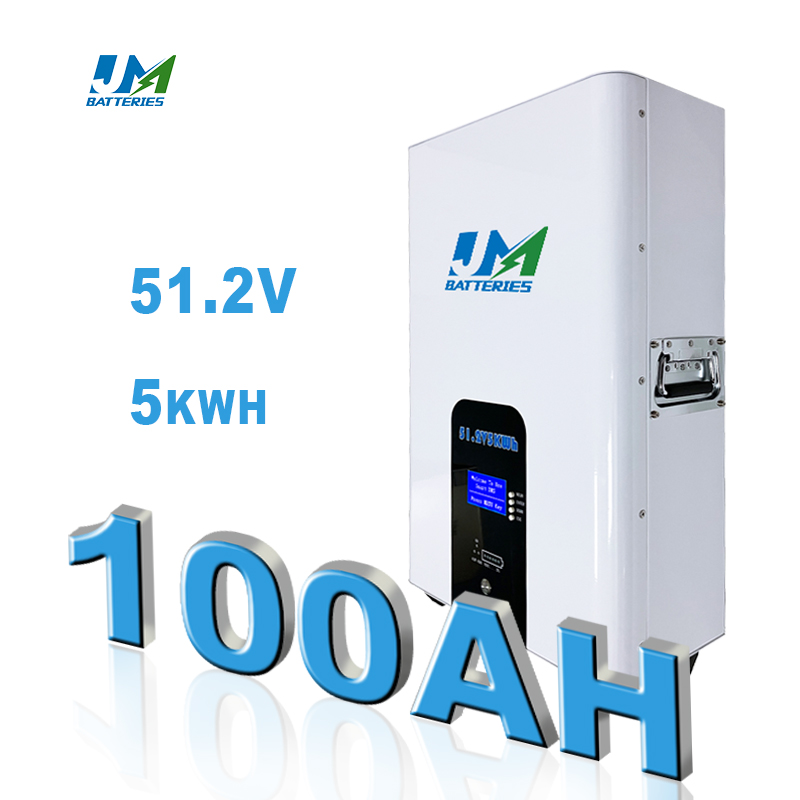

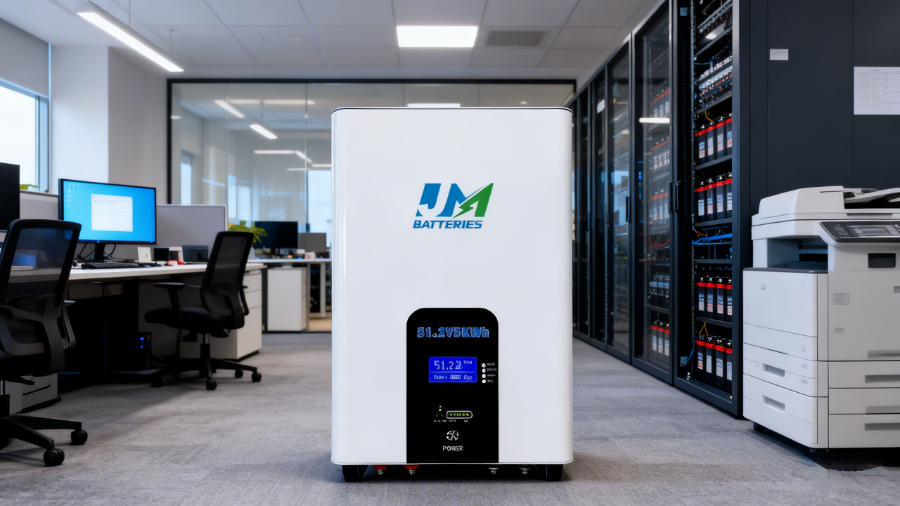

Our 51.2V 100Ah 5kWh Lithium Ion Battery

With 10 years of Dongguan manufacturing experience, this battery is built for real US home/farm use—withstanding Texas heat and California droughts, perfect for Home Solar System and Solar Pump System Battery setups.

Key features:

51.2V 100Ah (5kWh usable energy)
Safe lithium-ion chemistry (no thermal runaway when used correctly)
Built-in BMS protection (ideal for series wiring)
Long cycle life (up to 8,000 cycles)
Wall-mounted, space-saving design
Easy series/series-parallel wiring (no special tools)

This Lithium Ion Battery reliably powers well pumps, cabins, and whole-home backups—trusted by US homeowners for simplicity and durability.

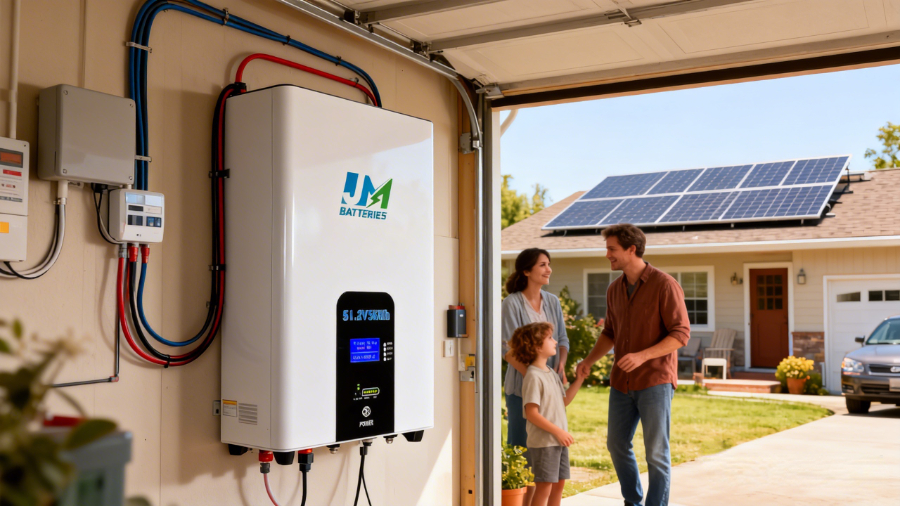

Real US Home Case Studies: Series Wiring in Action

These real US installations use our JM 51.2V 100Ah 5kWh Lithium Ion Battery—no fake stories, just real user experiences.

Case 1: California Farm Solar Pump System

Location: Rural Northern California (near Redding)

Needs: Solar irrigation pump + basic home loads

Battery Setup: 2×JM 51.2V batteries wired in series (102.4V 100Ah)

Farmer Mark struggled with unreliable lead-acid batteries until switching to our Lithium Ion Battery. After series wiring, the pump starts strong even on cloudy days, powers home basics, and runs reliably with no overheating (thanks to BMS).

Mark says: “Wiring in series was straightforward, and these batteries need no daily checks—worth every penny.”

Case 2: Texas Off-Grid Home Solar System

Location: Central Texas (near Austin)

Needs: Off-grid home for 4 + well pump + full household loads

Battery Setup: 4×JM 51.2V batteries (2 in series × 2 in parallel = 102.4V 200Ah/20kWh)

Sarah’s family needed reliable off-grid power. The series-parallel setup delivers stable voltage for their inverter/pump and double capacity for 2-3 days of backup—no outages during storms.

Sarah says: “These batteries never let us down—wiring in series was easy, and the system just works.”

Series vs Parallel Wiring: Which Do You Need?

Here’s a clear breakdown:

Feature	Series Wiring	Parallel Wiring
Voltage	Increases	Stays the same
Capacity	Stays the same	Increases
Use case	Match inverter voltage, solar pumps	Extend runtime, backup time
Our recommendation	For Solar Pump System Battery	For longer home backup

For most Home Solar System beginners, series wiring is the first essential skill. Use series-parallel for both higher voltage and runtime.

Final Thoughts

Learning how to wire batteries in series is key for DIY/professional Home Solar System setups. It’s simple but requires attention to safety—done right, it builds a stable, efficient battery bank for your inverter and Solar Pump System Battery.

Our JM 51.2V 100Ah 5kWh Lithium Ion Battery, backed by 10 years of experience, is safe, durable, and easy to install—trusted in US homes from California to Texas.

Always use matching batteries, follow safety steps, and double-check connections.
